E-paper configuration overview

Modified on Fri, 24 Jan at 1:58 PM

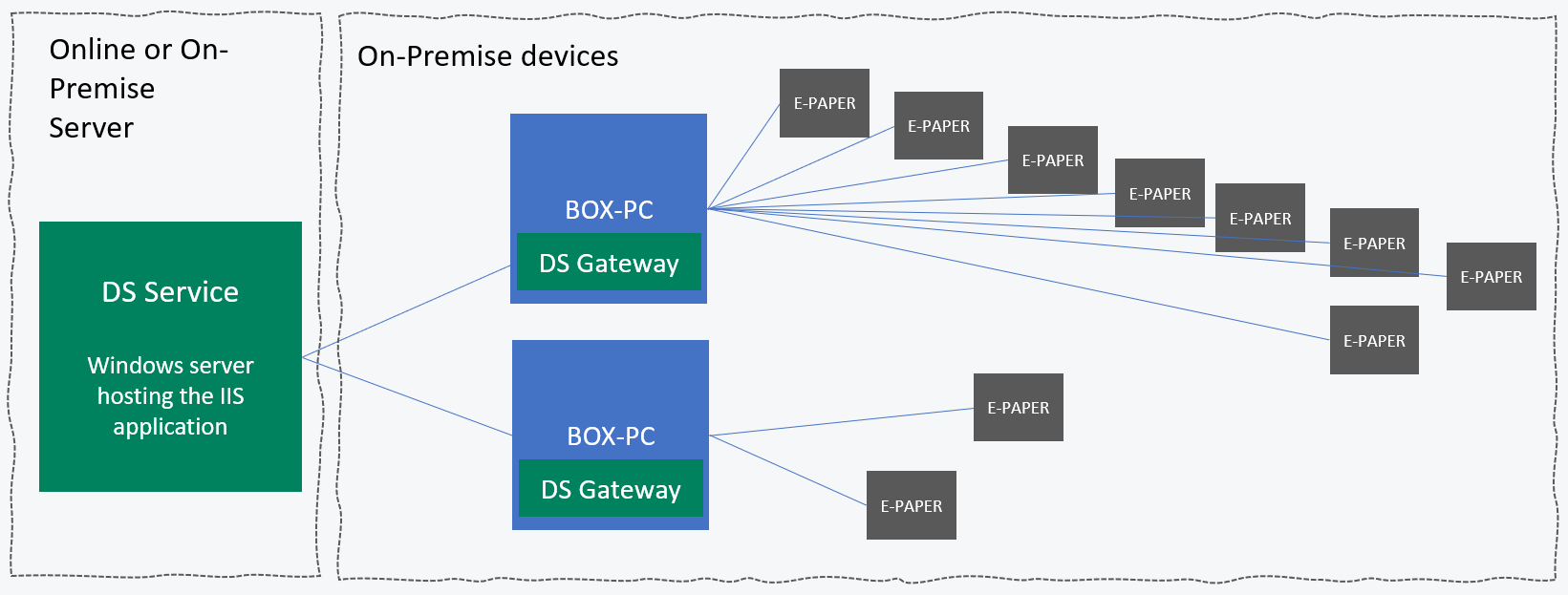

Understanding E-Paper Configuration: Overview of Setup, Communication, and Key Features

BOX PC: (DS-100-D, Qbic BXP-100) Android with Bluetooth dongles, see more
DS Gateway: Android app that controls the communication between the DS Service and the e-paper devices
E-PAPER: (DS-0400 or DS-0700) E-Paper 4.2" or 7,5" Display from Qbic Technology, see more

FAQ

What is the maximum distance between BOX-PC (DS-100-D) and ePaper Devices?
A clear, interference-free range of 20 meters can be achieved.
Materials such as metal and concrete walls have a significantly greater negative impact on Bluetooth communication, whereas materials like glass and wood have a relatively lesser effect.
See more

How many ePaper Devices can one BOX-PX (DS-100-D) support?
The Box PC, (equipped with Bluetooth Low Energy (BLE) 5.0) and DS Gateway app, can support up to 50 ePaper devices at one time.
Adding additional Bluetooth dongles can enhance the connection quality, but it won't increase the total number of supported ePaper devices beyond 50.
See more
