Entra ID Application setup for Delegated permission type

Overview

This article provides step-by-step instructions on how to configure Application section (with Delegated permission type) on OfficePlacebackend to facilitate search and sync operations with Azure AD/Exchange Online.

The Application section can be found with in your Organization under Organization Management.

Step-by-step instructions

Step 1: Register app in Azure AD

2. Enter the application Name and select ‘Accounts in this organizational directory only (… only – Single tenant) in Supported account types section.

3. Click [Register] button at the bottom of the screen. Your app will then be created in your Azure tenant.

Step 2: Retrieve details from app

Note: In this app, you need to retrieve the values of Tenant ID, App principal ID, and App Secret. Remember to copy them elsewhere for future usage.

After registering the app, the screen Overview will automatically appear, allowing you to retrieve the necessary details. You can also find Overview by accessing Azure portal ➔ Manage Azure Active Directory ➔ App registrations. Click [All applications] then search for and select your app ➔ select tab Overview.

In this screen, you can see a list of Essentials, in which you can get:

• Tenant ID: retrieved from Directory (Tenant) ID section.
• App principal ID: retrieved from Application (Client) ID section.

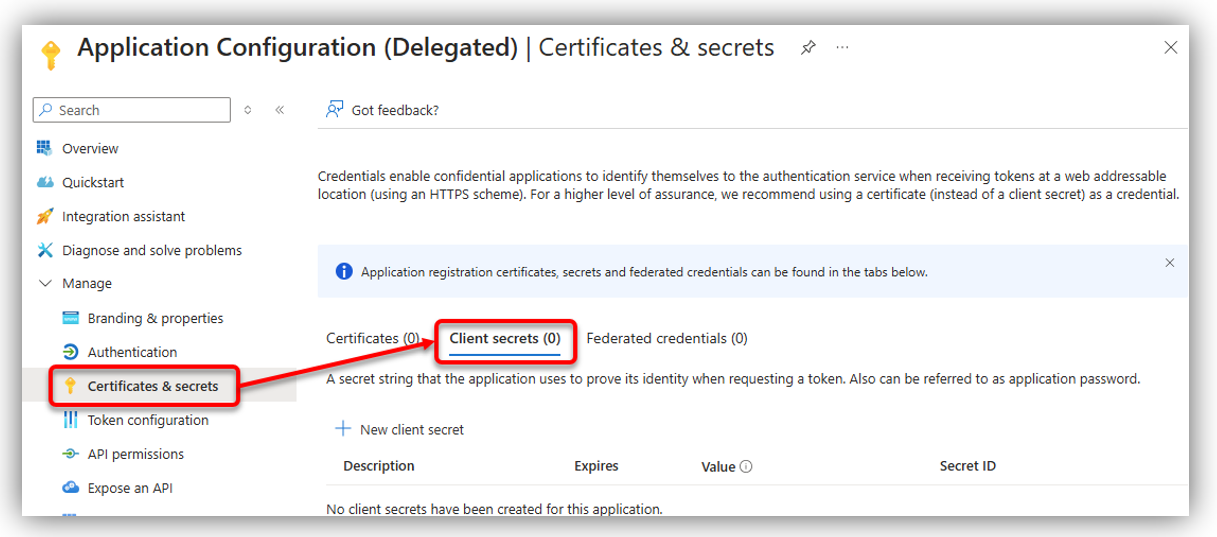

Next, click [Certificates & secrets] ➔ [Client Secret].

Choose [New client secret], a screen will appear as below:

Enter Description, select Expires time, then click [Add] button. The Value and Secret ID columns will be inserted:

Here, you can get:

Note:

1. Remember to copy the client secret value from the Azure app immediately after adding a client secret because it will be hidden the next time you open the app’s Certificates & secrets page.

2. When the secret is going to expire, remember to create a new secret, and use its Value to replace the expired one.

Step 3: Configure Authentication tokens in Azure AD

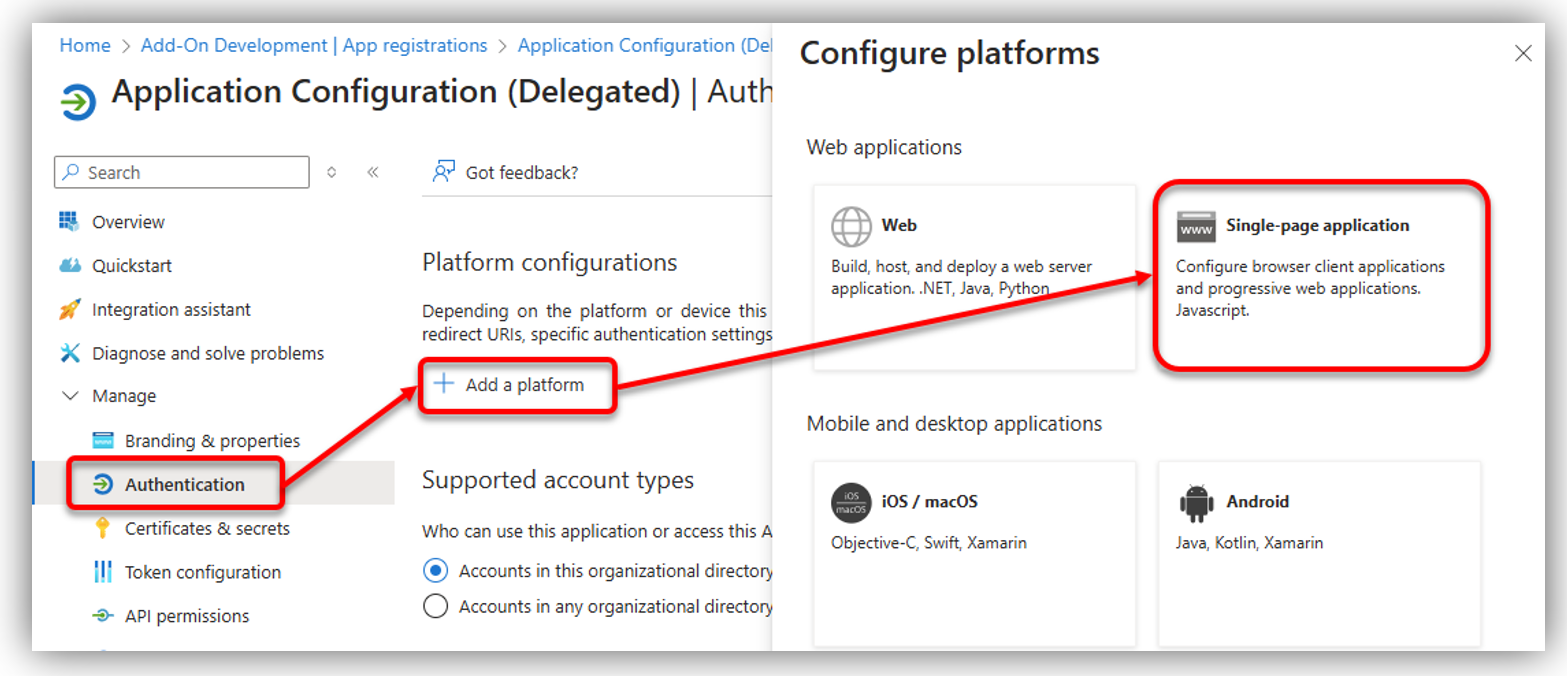

Next, click on [Authentication] section, as in the bellow figure, click [Add a platform], a right panel of Configure platforms will appear:

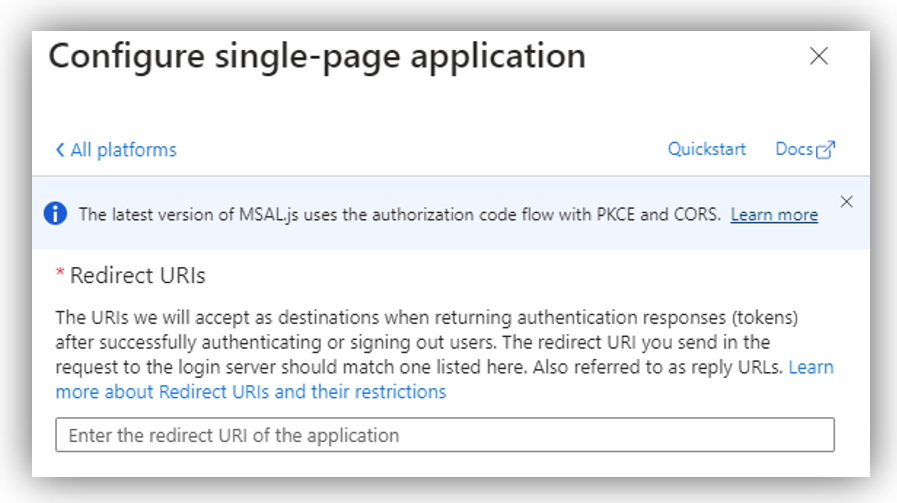

Select [Single-page application], and the following screen will appear:

You are required to complete Redirect URIs and Implicit grant and hybrid flows fields.

• Redirect URIs: Enter the URL of OfficePlace, for which you are configuring the application.
• https://admin.officeplace.global/

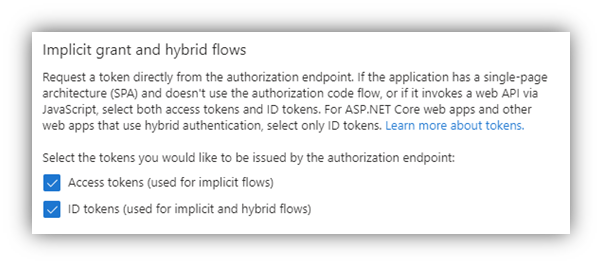

• In the Implicit grant and hybrid flows field, check on both [Access tokens] and [ID tokens].

Click [Configure] to switch to the last step.

Step 4: Configure API permissions in Azure AD

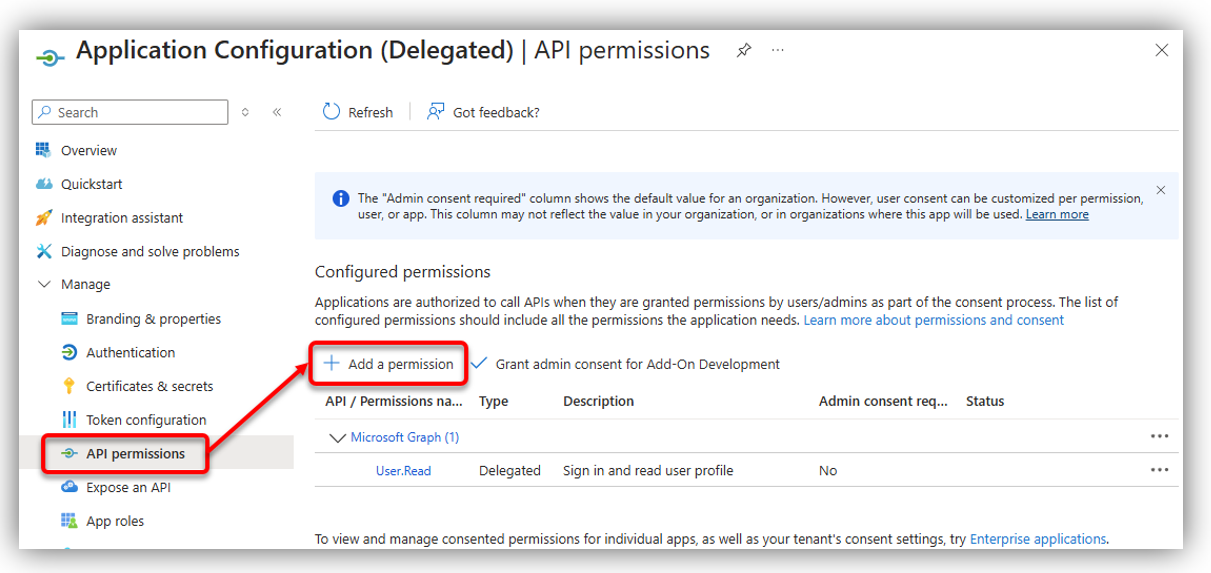

On your Azure app, go to API permissions then click [Add a permission]:

After that, the Request API permissions screen will appear, in which you select Microsoft APIs ➔ Microsoft Graph ➔ Delegated permissions:

Search and add the following permissions:

• Calendars.ReadWrite.Shared: allows OfficePlace to create, update, or delete reservations on the calendar when requested by Resource Central.
• User.Read.All: allows OfficePlace and Resource Central to search for the identity of users and resources.
• GroupMember.Read.All: allows OfficePlace and Resource Central to search for the identity of groups and their members.
• Mail.ReadWrite.Shared: allows OfficePlace to read and write user and shared mail when requested by Resource Central.
• Mail.Send.Shared: allows OfficePlace to send mail on behalf of others when requested by Resource Central.

Besides the 5 permissions listed above, this application also requires the Exchange.Manage permission from Office 365 Exchange Online. Continue to click [Add a permission] ➔ the Request API permissions screen will appear again, in which you select APIs my organization uses:

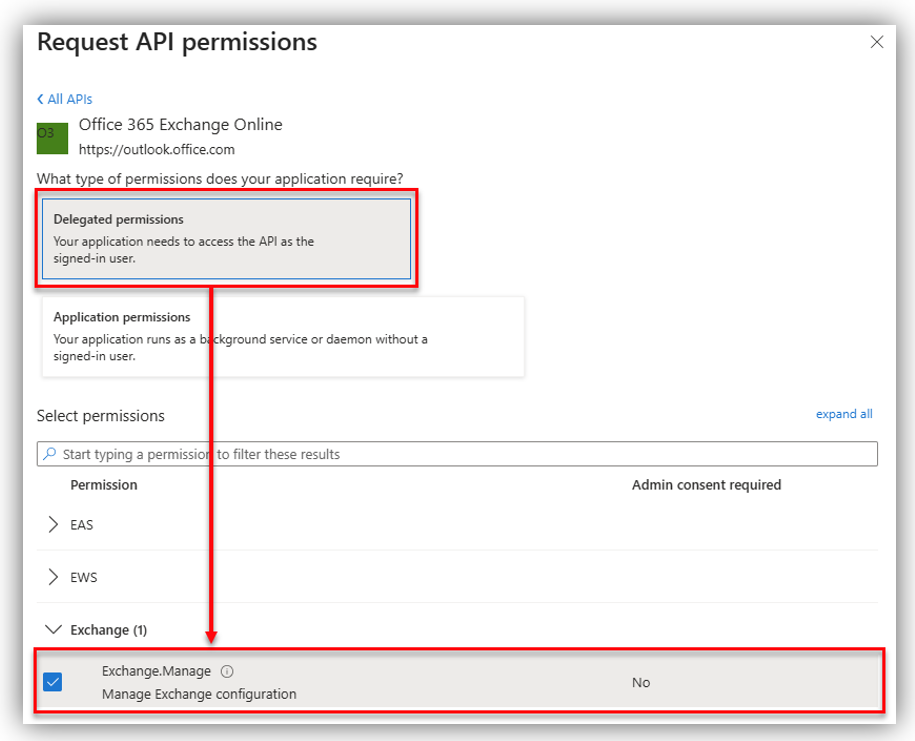

In the search box, search for Office 365 Exchange Online ➔ Delegated permissions:

Search and select Exchange.Manage permission:

Once you are done, click [Grant admin consent for …] to apply the added permissions. The result should look similar as follows:

Properties

Applies to: OfficePlace and OfficePlace Connect

Reference: TFS #339238

Knowledge base ID: 0337

Last updated: Dec 09, 2024
